A water meter can fail long before its electronics, register, or measurement mechanism reaches its expected service life. Often, a material decision made at the component level limits the meter’s lifespan: a housing absorbs too much moisture, a gear wears down under suspended solids, a seal degrades in chlorinated water, or an insert corrodes at the polymer-metal interface.

Selecting the best materials for water meter components requires more than comparing datasheets. Engineers and procurement teams must balance potable-water requirements, pressure, temperature, water chemistry, dimensional stability, wear resistance, tooling cost, and production volume. The right answer depends on the meter type and operating environment, but a structured material strategy prevents expensive redesigns after validation or field deployment.

Start With the Meter Architecture

Engineers should align material selection with the function of each part, rather than defaulting to a single preference for plastic or metal. A residential mechanical meter, an ultrasonic meter, and an industrial remote-read meter place different demands on their housings, internal parts, and protective covers.

Mechanical meters rely on moving elements such as impellers, gears, spindles, bearings, and register interfaces. These parts require controlled friction, good wear behavior, and dimensional repeatability. Ultrasonic meters eliminate many moving parts, but demand precise housing geometry, robust sensor retention, optimal acoustic performance, reliable electronics protection, and durable long-term sealing.

First, determine whether a component contacts water, bears structural loads, faces UV exposure, touches potable water, or serves a purely cosmetic purpose. A material that performs well for a dry external cover will likely fail inside a precision wetted chamber.

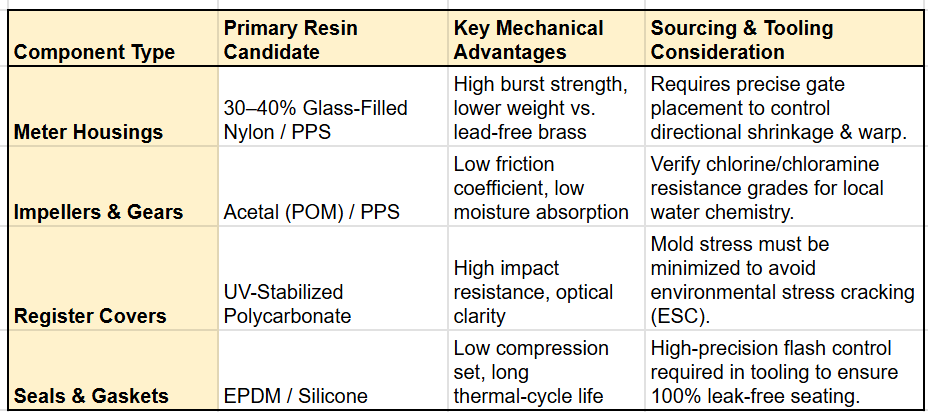

Best Materials for Water Meter Components by Function

Meter bodies and wetted housings

Manufacturers commonly make traditional meter bodies from lead-free brass, bronze, ductile iron, or stainless steel. Engineers still appropriately specify these materials when prioritizing high pressure, threaded installation, impact resistance, and established utility specifications. These materials also deliver familiar performance for large-diameter and commercial applications.

For many compact and residential designs, engineered plastics reduce weight, simplify assembly, and eliminate corrosion concerns. Designers commonly select glass-filled nylon, polypropylene, polyphenylene sulfide (PPS), and certain reinforced thermoplastics. Water temperature and pressure ratings heavily drive this selection.

Glass-filled nylon offers strength and stiffness, but it absorbs moisture. Engineers must account for that absorption in dimensional tolerances, conditioning, and long-term performance. Polypropylene possesses excellent resistance to many water environments and absorbs very little water, but its lower stiffness and heat resistance may limit its use in high-pressure or high-temperature designs. PPS provides excellent dimensional stability, chemical resistance, and heat performance, although it carries a higher material and processing cost.

When designing a housing with precision sensor features or interfaces that must remain stable for years, engineers can justify using PPS or a carefully engineered glass-filled nylon. When lower-pressure cold-water bodies make cost and chemical resistance the top priorities, polypropylene may offer the better production choice.

Impellers, gears, and moving internal components

Acetal, also known as POM, frequently represents one of the strongest choices for low-friction internal water meter components. It offers low moisture absorption, good dimensional stability, low friction, and reliable wear performance. These properties suit gears, impellers, bearing elements, and moving register parts particularly well.

POM does not automatically solve every design challenge. Water treatment chemistry, especially chlorine exposure, can affect long-term performance depending on the grade and operating conditions. Designers should specify a grade suitable for the intended potable-water environment and validate it through accelerated ageing and real-use testing.

PPS can provide a stronger option when temperature, chemical exposure, or stiffness exceeds POM’s practical range. Engineers find it especially useful in technical meter assemblies where precision geometry and high-temperature resistance matter more than raw resin cost. In some cases, a hybrid approach works best: a PPS structural carrier with POM moving components where friction control is critical.

Transparent covers and register windows

A clear register window must retain visibility while resisting impact, cleaning agents, UV exposure, and moisture. Manufacturers widely use polycarbonate because of its impact strength and clarity. It serves as a suitable option for protected register covers, but engineers must verify its chemical resistance against cleaners and service chemicals.

Acrylic provides excellent optical clarity and better scratch resistance than polycarbonate in some applications, but it exhibits more brittleness and less impact resistance. For outdoor installations, the design process should also evaluate UV stabilisation, wall thickness, and whether maintenance crews or installers might strike the cover.

Moulding quality directly impacts transparent parts. Gate location, melt temperature, cooling balance, and internal stress can affect clarity and crack resistance. A clear material cannot compensate for poor process control.

Seals, gaskets, and diaphragm components

Elastomer selection deserves the same level of scrutiny as the rigid plastic or metal housing. Engineers widely use EPDM for potable-water seals because it performs well with hot water, steam, and many chlorinated-water conditions. It often serves as a practical choice for gaskets, O-rings, and sealing interfaces.

Nitrile rubber, or NBR, offers good resistance to oils, but it performs less effectively than EPDM under hot water and ozone exposure. Silicone handles a wide temperature range and can serve well in specialised applications, though it may not offer the abrasion resistance or cost profile that every meter design requires.

Engineers must match every seal material to compression set requirements, gland geometry, assembly methods, water chemistry, and the required potable-water approvals. A seal that passes a short pressure test can still lose compression and create field leaks after years of thermal cycling.

Metal inserts, fasteners, and threaded interfaces

Plastic housings often require metal inserts for threaded connections, mounting points, or high-load joints. Manufacturers widely use brass for inserts because it machines well and supports reliable threading. However, alloy selection matters greatly for potable-water contact and corrosion performance.

Stainless steel can offer stronger corrosion resistance, particularly for external fasteners and challenging water environments. The trade-offs include higher costs and the need to control galvanic corrosion when mixing multiple metals. Insert geometry, knurl design, moulding temperature, and post-moulding stress all influence whether an insert remains secure through pressure cycling.

Water Chemistry Changes the Decision

A material selection that works in one municipal system may not perform the same way in another. Chlorine or chloramine disinfectants, dissolved minerals, pH, sediment, water temperature, and stagnation periods all affect ageing.

Chlorinated water can accelerate degradation in some polymers and elastomers. Hard water may create deposits that increase friction in moving assemblies. Sediment can turn a low-friction bearing surface into a wear point. For meters installed outdoors or in pits, moisture, freeze-thaw cycles, UV exposure, and mechanical impact become equally relevant.

This is why material specifications should describe the service environment rather than simply naming a resin family. Specify temperature range, maximum pressure, expected disinfectant exposure, UV requirement, potable-water certification needs, and target service life. A complete specification gives the moulding and engineering team a basis for selecting the correct grade, reinforcement, colour concentrate, and stabiliser package.

Design for Injection Moulding, Not Just Material Performance

The best resin on paper can become a poor production decision if part geometry does not support stable moulding. Uneven wall thickness, sharp transitions, deep ribs, inadequate draft, or poorly positioned gates can cause warpage, sink, stress, and dimensional variation.

Glass-filled materials require particular attention. They offer stiffness and strength, but fibre orientation can create directional shrinkage. That affects roundness, flatness, sealing surfaces, and precision features. Tool design, gate placement, flow path, and cooling layout must be developed around the functional requirements of the part.

For components with tight interfaces, mould flow analysis and prototype validation can reduce risk before production tooling is finalised. This is especially valuable for meter covers, valve interfaces, sensor housings, and assemblies with overmolded or heat-staked inserts.

Glasfil supports this process with in-house mould design, fabrication, modification, injection moulding, and quality control, helping product teams move from component concept to repeatable production without splitting responsibility across multiple suppliers.

Validate Materials Under Real Operating Conditions

Data sheets are a starting point, not a field-life guarantee. Before final approval, test the material in conditions that reflect the actual meter application. Pressure cycling, thermal cycling, chemical ageing, UV exposure, drop or impact testing, torque testing, leak testing, and wear testing should be connected to the failure modes that matter for the design.

For moving components, measure changes in torque, rotational accuracy, wear debris, and dimensional fit after testing. In the case of housings and seals, inspect for leakage, creep, cracking, discolouration, and loss of mechanical strength. For transparent covers, test optical clarity and stress cracking after exposure to relevant chemicals.

A practical validation plan also considers manufacturing variation. Test parts from early tool trials and production-representative runs, not only hand-finished prototypes. This reveals whether the material and process can consistently meet requirements at volume.

Make the Material Choice a Lifecycle Decision

The lowest resin price rarely represents the lowest component cost. A less expensive material may require thicker walls, longer cycle times, more complex assembly, tighter process control, or earlier replacement. A higher-performance material may reduce scrap, eliminate corrosion-related issues, improve dimensional consistency, and support a longer service interval.

For most water meter programs, the strongest result comes from assigning materials by function: corrosion-resistant structural materials for housings, low-friction polymers for moving mechanisms, durable elastomers for sealing, and carefully selected metals where threads or load-bearing interfaces require them. The next productive step is to define the actual operating conditions and test the proposed material stack as a complete assembly before the production tool locks in the decision.

Stop Guessing Resin Performance — Validate Your Meter Design Before Cutting Steel

Whether you are transitioning from lead-free brass to high-performance polymers or scaling up production for a smart ultrasonic meter program, material selection directly drives your Total Landed Cost and field warranty risk. Contact us now.
